MIL-HDBK-274A

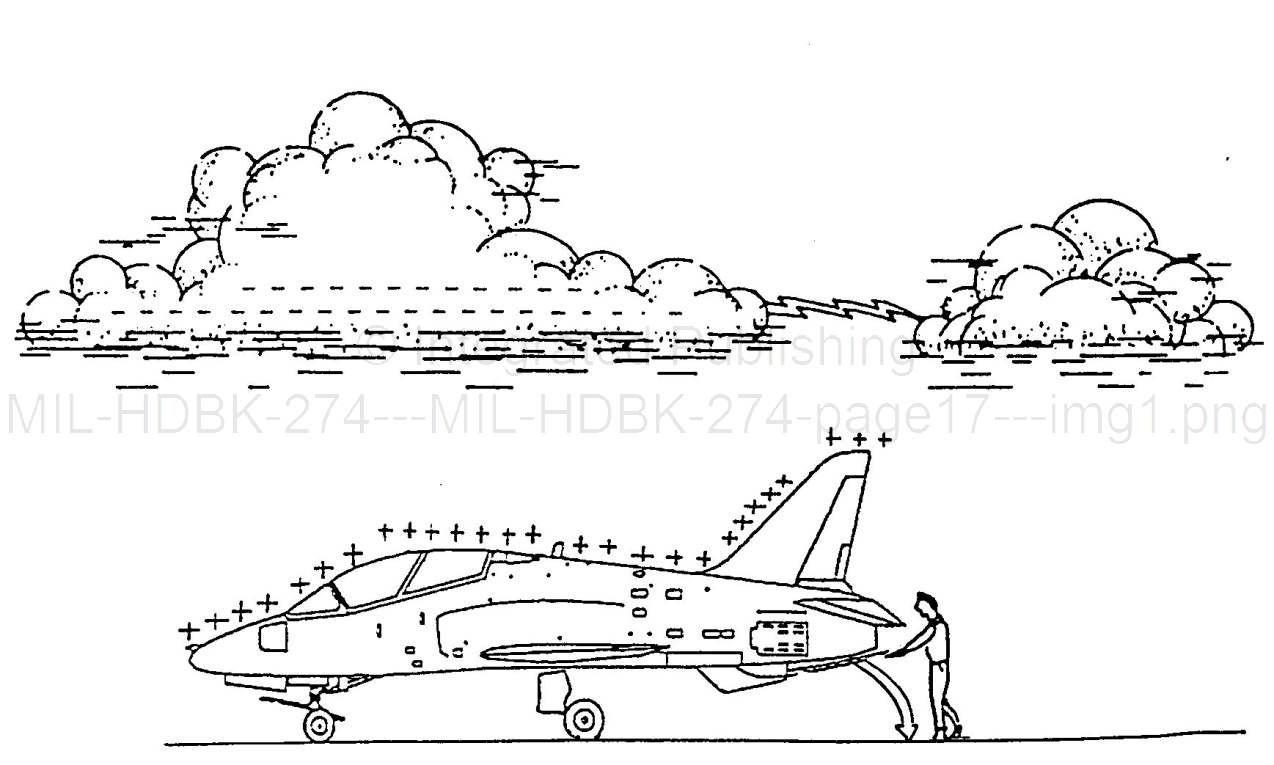

FIGURE 2. Possible return path for accumulated charge during remote discharge of clouds.

4.4.1.2.2 Personal contact. A person in contact with an aircraft charged by induction to

60 kV could discharge 9 Joules (J) of energy from the aircraft.

Equation: (2)

Where:

U = i C·V2

= i (0.005µF) · (60 kV)2

= 9J

C = aircraft capacitance to ground (microfarads) V = voltage from aircraft to ground (volts)

U = energy level (Joules)

This level well exceeds the threshold value for lethal shock and could be fatal. To further analyze potential hazards the following equations are used:
